Placa Madre Prime B550m-K Socket Am4 Micro Atx (PRIME B550M-K)

IMAGEN REFERENCIAL

¿Necesitas ayuda? Llámanos al +56 2 2820 4740 | +56 2 2820 4600

ASUS - Placa Madre Prime B550m-K Socket Am4 Micro Atx (PRIME B550M-K)

Código: 5FBBE0ABD5 | Part Number: PRIME B550M-K

RETIRO EN TIENDA

Retira el Miércoles 20 de Agosto, dentro de nuestro horario de atención.

DESPACHO A DOMICILIO

Tu despacho llega el Jueves 21 de Agosto (Región Metropolitana)

$103.603

Contado o Transferencia

$109.055

Tarjeta de Débito o Crédito

$112.612

Otros medios de pago sujeto a evaluación

Agregar al Carro

100 unidades

Cotización Empresa

Imprimir

Descripción

Tarjeta Madre micro ATX AMD B550 (Ryzen AM4) con doble M.2, PCIe 4.0, 1 Gb Ethernet, HDMI / D-Sub / DVI, SATA 6 Gbps, USB 3.2 Gen 2 Tipo-A

Socket AMD AM4: Listo para procesadores AMD Ryzen de tercera generación.
Enfriamiento completo: Disipador térmico PCH y Fan Xpert 2+.
Conectividad ultrarrápida: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Tipo-A.,
5X Protection III: Múltiples protecciones de hardware para una protección integral del sistema.

PRIME B550M-K

Especificaciones

PART NUMBER : PRIME B550M-K

CPU
Build in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors *
* Refer to www.asus.com for CPU support list
Chipset
AMD B550
Memoria
3rd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
3rd Gen AMD Ryzen with Radeon Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Gráficos
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.
Slots de Expansión
3rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen with Radeon Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1
Almacenamiento
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen with Radeon Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control

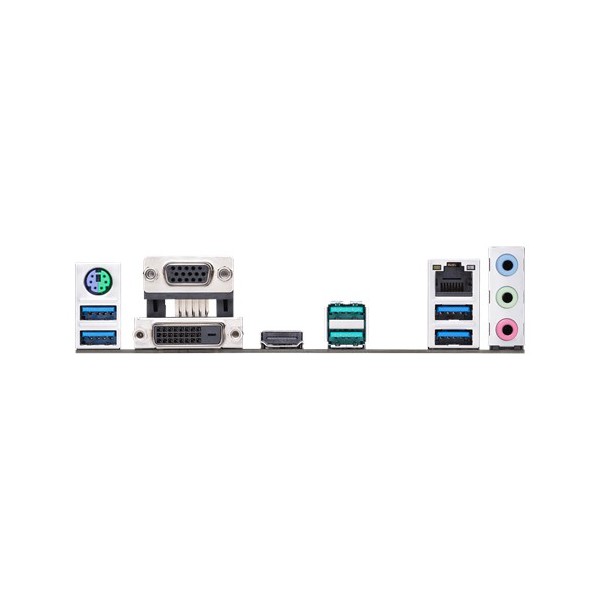

Puertos I/O Traseros
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
Internal I/O
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

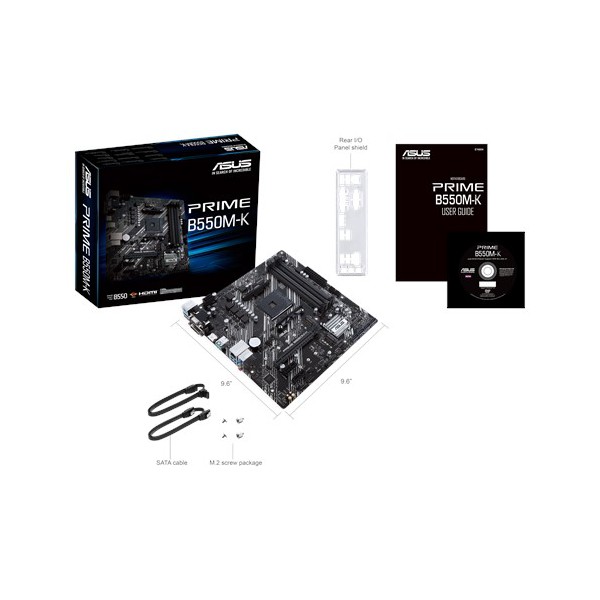

Accessorios
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Capacidad de gestión
WOL by PME, PXE
Sistema Operativo
Windows® 10 64-bit
Factor de forma
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Tarjeta Madre micro ATX AMD B550 (Ryzen AM4) con doble M.2, PCIe 4.0, 1 Gb Ethernet, HDMI / D-Sub / DVI, SATA 6 Gbps, USB 3.2 Gen 2 Tipo-A
